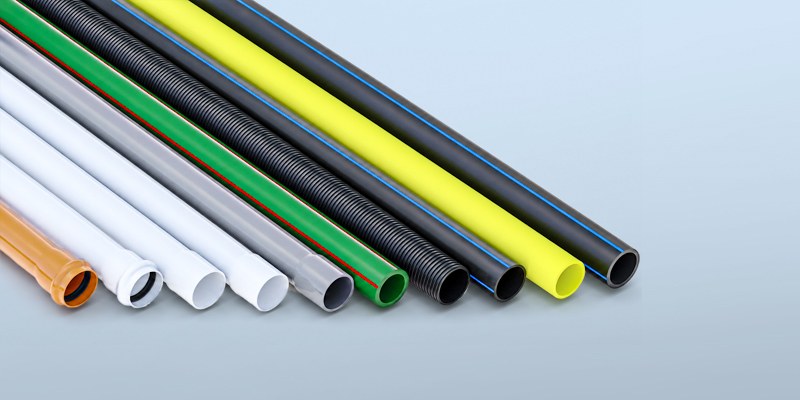

Material: PE 100
Pressure Rating: 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2.0MPa
Size: full 20mm through 1600mm availability
Standard: SNI 4829.2, ISO 4427-2, EN 12201-2,AS/NZS 4130, BS 6920, GB/T 13663.

Colors:

·Black with blue stripes: all size

·Other colors are also available upon request

Form Supplied:

·5.8, 6, 11.8, 12 meters straight length (all size)

·50 or 100 meters coil length (dn16~dn110)

·Other forms are also available upon request

Material: PE 100, steel wiremesh skeleton
Pressure Rating: 0.8MPa, 1.0MPa, 1.6MPa, 2.0MPa, 2.5MPa, 3.5MPa
Standard: CJ/T189
Size: full 50mm through 800mm availability

Colors:

·Black with blue stripes: all size

·Other colors are also available upon request

Form Supplied:

·5.8, 6, 11.8, 12 meters straight length (all size)

·50,100, 200 meters coil length (dn50~dn110)

·Other forms are also available upon request

·Material: Unplasticized Poly (Vinyl Chloride)
·Pressure Rating: 0.63MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
·Size: full 20mm through 630mm availability
·Standard: ISO 1452-2, BS 6920, GB/T 10002.1
·Colors: blue, white or other colors are available upon request
·Form Supplied: plain end pipe, belled end pipe or gasketed pipe with 5.8m or other length are available upon request

Material: Random Polypropylene
Size: full 16mm through 160mm availability
Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa,2.5MPa
Standard: ISO 15874-2, EN ISO 15874-2,W270, BS EN ISO 15874-2, BS 6920, DIN8077, DIN 8078, GB/T 18742-2
Colors:
• Light grey or white, pipe for cold water is marked with blue stripes, pipe for hot water is marked with red stripes
• Other colors are also available upon request
Form Supplied:
• 4 meters straight length (all size)
• 50 or 100 meters coil length (dn16-dn32)
• Other forms are also available upon request

Material: Polyethylene and Aluminum
Size: 1014 to 2632
Color: white,orange and yellow
Standard: ASTM F1281、ASTM F 1282、BS 6920
Form Supplied: coil form
Applications: cold water supply, hot water supply and gas supply
Welding Mode: over-lap welding

Hot dip galvanized pipes can be used for water supply, gas supply,

petrol supply, steam supply and air compression. It is extensively

used in the field of machinery and constructions.

Material: PE 100
Pressure Rating: 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa
Size: full 20mm through 1600mm availability
Standard: SNI 4829.2, ISO 4427-2, EN 12201-2,AS/NZS 4130, BS 6920, GB/T 13663.

Colors:

·Black: all size

·Other colors are also available upon request

Form Supplied:

·5.8, 6, 11.8, 12 meters straight length (all size)

·50 or 100 meters coil length (dn20~dn110)

·Other forms are also available upon request

·Material: High Density Polyethylene
·Size: 110mm to 800mm

·Ring Stiffness: SN4 and SN8

·Color: black or other colors upon request

·Standard: BS EN13476-2:2007 BS EN13476-3:2007+Al:2009,GB/T19472-1

·Application: municipal sewage, rainwater discharge, floodwaters drainage, irrigation, ventilation for mine and buildings, industrial waste discharge

· Material: High Density Polyethylene
· Size: 500mm to 2400mm

· Ring Stiffness: SN8, SN12.5 and SN16 Color: black or other colors upon request

· Length: 6m or other length upon request

· Applications: municipal sewage, rainwater discharge, floodwaters drainage, irrigation, industrial waste discharge

Material: Unplasticized Poly(Vinyl Chloride )
Size:full 32mm through 630mm availability
Standard: ISO 3633:2002
Colors:white or other colors availability upon request
Form Supplied: 4m,6m or other Length availability upon request.

· Excellent physical property: High tensile strength, excellent flexibility, excellent compressive resistance, impact resistance, earthquake resistance .

· Good corrosion resistance.

· Easy installation: Use butt fusion joint or socket-weld joint.

· Environment-friendly: This product does no harm to the environment and can be recycled. © Long service time.

· Light weight: Easy operation and low installation costs.

· Excellent physical property: High tensile strength, excellent flexibility, excellent compressive resistance and impact resistance.

· Good corrosion resistance.

· Easy installation: Light weight and handed friendly.

· Environment-friendly: This product does no harm to the environment and can be recycled.

· Long service time.

· High intensity, excellent compressive resistance and impact resistance.

· Movement resistance. Low requirements for foundation treatment, suitable for soft soil or quicksand foundation. © Easy installation, effectively prevent the liquids' penetration.

· Smooth internal wall and low friction factor.

· Good Corrosion resistance.

· Light weight,easy to transport and install.

Produced strictly in accordance with GB/T14823.1-93 and BS4568-1970, LIANSU Electrical Metallic Tubings have two different kinds of production process, one is ERW Black first, and then hot-dip galvanized, the other is using galvanized sheet to welded, and then zinc spraying to the welded line. Therefore, our products have different corrosion grades. Moreover, our products have good fire resistance, corrosion-resistant and simple structure, and they can protect the wires under a harsh environment. They will be the electric installation engineerings' preferences.
wires are extensively used in the telecom, electric and other fields

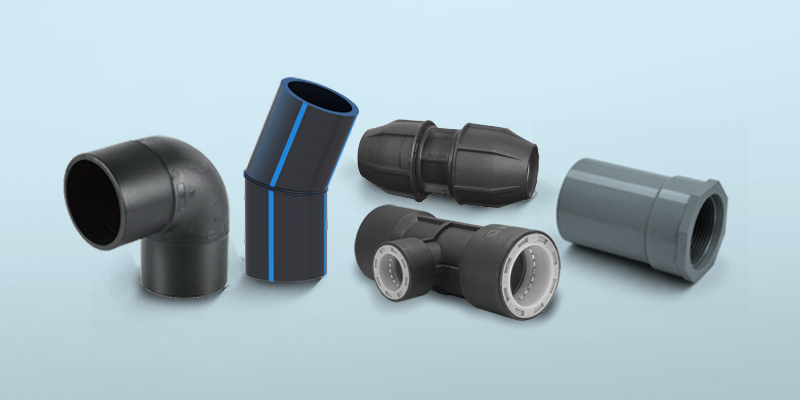

Merupakan fitting (sambungan pipa) yang terbuat dari Polyethylene (PE) digunakan untuk menghubungkan antara pipa ke pipa atau pipa ke berbagai accessories. Di produksi dengan cara Injection Molding dan Fabricated/Segmented, tersedia dari ukuran 20 mm sampai 1200 mm mengikuti Standard ISO dan SNI.

Material: PE 100
Size: full 110mm through 800mm availability

Pressure Rating: 0.6MPa, l.OMPa, 1.6MPa or other nominal pressures available upon request Standard: ISO 4427-3 EN 12201-3 BS EN 12201-3 BS 6920

Color: blue, black with blue stripes or other colors available upon request

Angles: various angles available upon request

Joint: joining pipe and fabricated fittings by butt fusion joint

Material: PE 100
Size: full 20mm through 400mm availability

Pressure Rating: 1.6MPa or other nominal pressures available upon request Standard: ISO 4427-3, EN 12201-3, BS EN 12201-3 AS/NZS 4129 BS 6920

Color: blue, black or other colors available upon request

Joint: joining pipe and electro fusion fittings by electro fusion joint

Material: PE 100
Size: full 20mm through 110mm availability
Pressure Rating: 1.6MPa, or other nominal pressures available upon request
Standard: ISO 4427-3, EN 12201-3, BS EN 12201-3 BS 6920

Color: blue (all size),black (dn110)

other colors are also available upon request

Joint: joining pipe and socket fusion joint fittings by socket fusion joint

Material: PVC 12454
Size: 1/2" - 6"
Standard: ASTM D2466, ASTM D1784, NSF/ANSI14, NSF/ANSI16, CSA B 137.3, ASTM F1970
Color: White
Certification: cNSFus, cUPC

·Material: Brass
·Size: 1014 to 2632

·Type: Brass fittings and nickel-plated brass fitting

·Color: brassy and silver

·Standard: ASTM F 1281. ASTM F 1282

·Applications: cold water supply, hot water supply and gas supply

·Joint: Joining the pipe and fittings with mechanical compression joint

Plastic inspection chamber is used to connect drainage or sewage installation and/or to change the direction of drainage or sewerage runs, the termination of which at ground level permits the introduction of cleaning, inspection and test equipment and the removal of debris.

In recent years, all kinds of plastic drainage pipes are widely used on sewerage in municipal engineering and building area. As the advantages of light weight, good leakage resistance and convenient construction, plastic inspection chamber is widely recognized. The plastic inspection chamber can also solve the leakage of whole drainage pipe net, which was caused by deformation coefficient discordance of connections between traditional plastic pipes with brickwork/concrete inspection chamber. The plastic inspection chamber makes assembly construction of municipal and building engineer possible, and realizes the true meaning of construction integration for drainage engineer. This product is mainly used on sewerage in municipal engineering and building area.

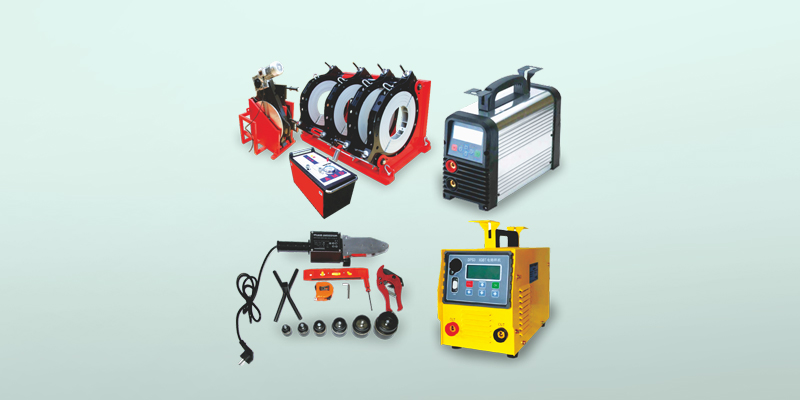

Merupakan Mesin yang digunakan untuk menyambung Pipa dan fitting yang terbuat dari bahan HDPE, PE, PP, PPR dan PVDF.
Cara penyambungannya dilakukan dengan butt fusion Hydraulic, 4 clamp DN. 1000 -1600 mm. Keunggulan Mesin ini mudah
digunakan, lebih cepat, ringan dan kuat. Cocok digunakan pada lokasi lapangan maupun didalam bangunan.

Merupakan Mesin yang digunakan untuk menyambung Pipa dan fitting yang terbuat dari bahan HDPE, PE, PP, PPR dan PVDF. Cara penyambungannya dilakukan dengan butt fusion, 4 clamp yang digerakkan dengan mesin hydraulic secara automatic ,Kelebihan Mesin ini adalah mesin butt fusion paling canggih, memiliki desain menarik, proses penyambungan mudah, pengoperasian di set langsung dengan data logger yang terintegrasi di mesin, dapat merekam proses penyambungan, data proses penyambungan dapat di cetak atau disimpan di USB/komputer, kwalitas sambungan sesuai standard, tekanan lebih besar dan kuat. waktu proses penyambungan lebih tepat dan konsisten, cocok digunakan pada lokasi lapangan maupun didalam bangunan.

Socket Fusion Welding Machine dirancang khusus untuk menyambung pipa berbahan plastik seperti polyethylene (PE) atau polypropylene (PP) dengan metode socket fusion. Dengan desain yang portabel mampu membantu proses pengelasan dengan cepat dan efisien. dengan antarmuka pengguna yang mudah untuk digunakan.

Dirancang untuk mengelas fitting Electro Fusion dengan presisi, ideal digunakan baik di lapangan maupun di ruangan yang sangat cocok untuk berbagai proyek perpipaan di lokasi konstruksi dan fasilitas manufaktur dan pastinya menjamin sambungan pipa yang tahan lama, aman dan efisien. Electro Fusion Welding Machine Memanfaatkan teknologi elektrofusion dengan antarmuka pengguna yang mudah untuk digunakan.

Alat bantu pada pengerjaan pipa adalah berbagai perangkat dan peralatan yang digunakan untuk memudahkan proses instalasi, perawatan, dan beberapa perbaikan jaringan pipa. Alat-alat ini membantu memastikan bahwa pipa dipasang dengan benar, aman, dan efisien. Berikut beberapa jenis alat bantu yang sering digunakan dalam pengerjaan pipa.

Penggunaan alat bantu yang tepat dapat meningkatkan efisiensi, keselamatan, dan kualitas pengerjaan pipa.

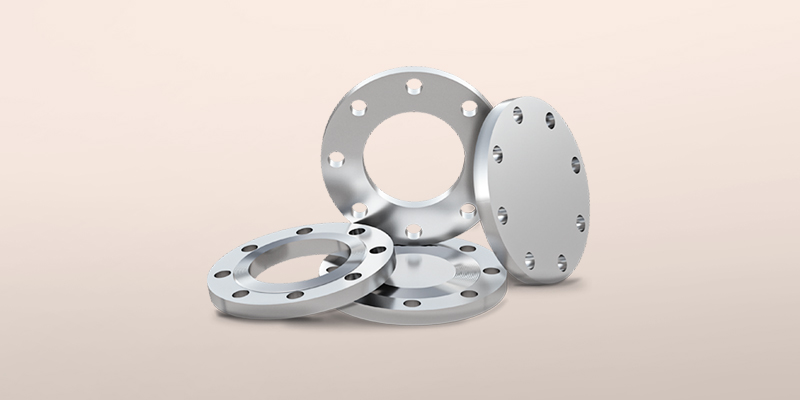

Beberapa jenis flange berkualitas tinggi: Baja (Steel) untuk kekuatan ekstra, ANSI untuk standar industri, dan HDPE untuk aplikasi berbasis polietilena berdensitas tinggi. Keuntungan utama meliputi kekuatan terjamin, pemasangan mudah, dan perlindungan maksimal terhadap korosi.
